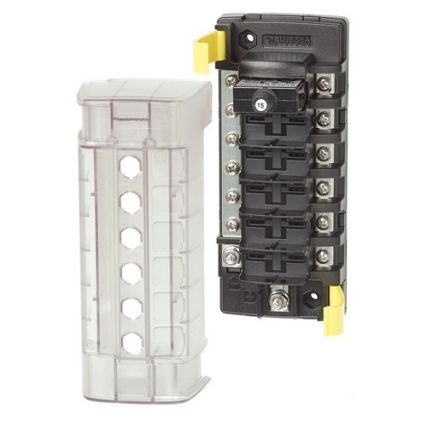

Blue Sea 5052 St Clb Circuit Breaker Block - 6 Position W/Negative Bus

Condition: New

$57.46
Quantity in Stock: 0
SKU
BLU5052

Free Ground Shipping*

Out of Stock - Expected Ship date: Fri Dec 13, 2024 to Mon Dec 16, 2024


Blue Sea 5052 St Clb Circuit Breaker Block - 6 Position W/Negative Bus

ST CLB Circuit Breaker Block - 6 Position w/Negative Bus

Features
  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover


Specifications:
Circuits: 6
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 5.63"(143 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 0.75lb (0.34 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.



Manufacturer Part Number: 5052
More Information
Special Shipping Message Free Ground Shipping*
Manufacturer Part Number: 5052
Specifications:
  • Amperage = 100/32a
