Garmin Reactor 40 Hydraulic Corepack With Smartpump V2 & Ghc 50 Autopilot Instrument Pack

Condition: New

$4,399.99
Quantity in Stock: 0
SKU
GAR010-02794-01

Free Two Day Shipping*

Out of Stock - Expected Ship date: Mon Jan 06, 2025 to Tue Jan 07, 2025


Garmin Reactor 40 Hydraulic Corepack With Smartpump V2 & Ghc 50 Autopilot Instrument Pack

Reactor™ 40 Hydraulic Corepack with SmartPump v2 & GHC™ 50 Autopilot Instrument Pack

Every Captain Needs a Co-Pilot. Designed for powerboats, this Reactor 40 hydraulic corepack with SmartPump v2 and GHC™ 50 display gives you the extra hand you need, so you can explore paradise worry-free.

Features:

  • This Reactor 40 corepack is the perfect companion for your hydraulically steered system.
  • With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation.  It even reduces power consumption, minimizes heading error, and more.
  • Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course.
  • You just want to get on the water, so we made calibration fast and easy.  That’s the power of simplicity.
  • Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix® marine smartwatches, and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument.)
  • The SmartPump v2 is a one-size-fits-most solution that provides optimal control and confidence on the water. Plus, gain better thermal performance, higher reliability, and lower power consumption.
  • Gain more freedom when maneuvering your boat.  This corepack allows for optional Shadow Drive technology to automatically disengage the autopilot when you turn the wheel.
  • Want more?  The optional GHC™ 50 autopilot instrument enhances your autopilot experience.
  • When connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns — plus wind hold and tack/jibe when paired with a wind sensor (sold separately.)

Technical Specifications - SmartPump v2:

  • Dimensions (H x W x D) - 7 3/4" x 7 1/2" x 9 5/8" (197 mm x 190 mm x 244 mm)
    • Weight - 16.5 lbs (7.5 kg)
    • Temperature range - From 5°F to 131°F (from -15°C to 55°C)
    • Material - Electronics Control Unit (ECU) - fully gasketed, aluminum alloy.  Bracket - carbon steel.  Manifold - aluminum alloy.  Motor - aluminum alloy
    • Power cable length - 9 ft (2.7 m)
    • Power input - 11.5-30 Vdc
    • Fuse - 40 A, blade-type
    • Main power usage (standby) - less than 1 A.
    • Main power usage (engaged) - 5-10 A and peak - 34 A
    • Flow rate - Configurable from 0 to 2.4 L per minute
    • Compatible with steering cylinder sizes from 4-24 cu in.  7-second lock to lock up to 17 cu in

Technical Specifications - CCU:

  • Dimensions: 3 19/32" diameter (91.4 mm)
  • Weight: 5.6 oz (159 g)
  • Temperature range: From 5°F to 131°F (from -15°C to 55°C)
  • Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
  • CCU cable length: 9.5' (3 m)
  • NMEA 2000 power input: 9-16 V
  • NMEA 2000 LEN: 3 (150 mA)

Technical Specifications - Buzzer/Alarm:

  • Dimensions (L × Diameter) - 29/32" × 1.0" (23 mm × 25 mm)
  • Weight - 2.4 oz (68 g)
  • Temperature range - from 5°F to 131°F (from -15°C to 55°C)
  • Cable length - 10' (3.0 m)

Technical Specifications - Reactor 40:

  • Unit dimensions (W x H x D) - 4.3" x 4.4" x 1.9" (10.9 x 11.2 x 4.8 cm)
  • Display resolution (W x H) - 320 x 240 pixels
  • Display Type - QVGA color LCD display
  • NMEA output - NMEA 2000
  • Supply voltage - 10 to 20V
  • Operating temperature - -15° C to 70 C° (5° F to 158° F)

Technical Specifications - GHC™ 50:

  • Dimensions (H x W x D) - 5.5” x 4.1” x 2.0” (14.0 x 10.5 x 5.1 cm)
  • Display Type - 800 x 480 WVGA
  • Display Size - 5" (12.7 cm)
  • Touch Display - Yes
  • Knob Control - With GRID 10/20
  • Remote Control via ANT+® Connectivity - Yes
  • Wi-Fi Connectivity - Yes
  • NMEA 2000 Networking - Yes
  • Ethernet - Yes

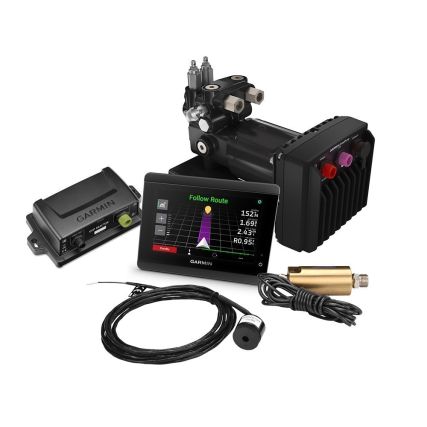

What's in the Box?

  • GHC™ 50 Marine Autopilot Display
  • SmartPump v2
  • Reactor 40 CCU (Course Computer Unit)
  • ECU (Electronic Control Unit) power cable
  • Interconnect cable
  • Shadow Drive
  • Buzzer
  • NMEA 2000® drop cables (2 meters)
  • NMEA 2000 power cable
  • NMEA 2000 T-connectors
  • Male and female terminators
  • Documentation

*Sold as an Individual



Manufacturer Part Number: 010-02794-01

More Information
Special Shipping Message Free Two Day Shipping*
Manufacturer Part Number: 010-02794-01
