Johnson Pump 1600 Gph Bilge Pump 1-1/8" Hose 12v

Rating:
91% of 100

Condition: New

$91.33
Quantity in Stock: 1
SKU
JOH16004

Free Ground Shipping*

To Ship Out Today, Order This Item in the Next

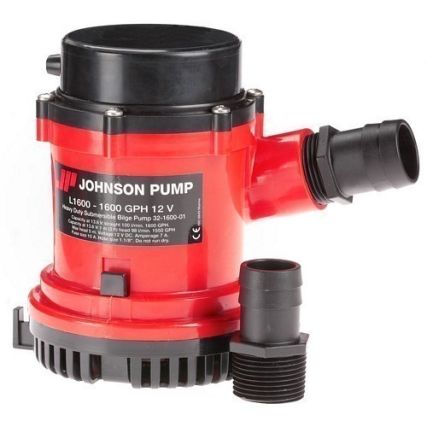

Johnson Pump 1600 Gph Bilge Pump 1-1/8" Hose 12v

Heavy Duty Bilge Pump 1600 series 12v:
The best choice when you are looking for high performance, heavy duty pumps
designed to meet and exceed the tough demands of commercial and recreational duty. This pump has a liquid cooled, 12-pole motor with double ball bearings for extended service life. The 2200 motor is sealed off by a mechanical seal design, while the 1600 model has lipseal. The impeller is carefully designed and tested to maximize head and flow. The 4000 features a robust motor design, mechanical shaft seal, high impact ABS plastic and unique threaded port design. Universal base plate and a choice of 1-1/2" or 2" ports makes for a simple installation. Removable check valve included.
CE-Approved

Features:
  • Heavy duty, 12-pole double ball bearing motor
  • Liquid cooled for extended motor life
  • Quality engineered mechanical/lip seal
  • ISO 8849 Marine and CE standards
  • Easily interchangeable with most similar bilge pumps
  • Pump body: Thermoplastic
  • Shaft seal: Mechanical seal
  • Shaft: Stainless steel (SS2343)
  • Voltage: 12 V
  • Capacity 1.0 m head (13.6 V/27 V): 98 l/min - 1550 GPH
  • Capacity straight (13.6 V/27 V): 100 l/min - 1600 GPH
  • Amperage: 7 A
  • Fuse Size: 10 A
  • Connection: 1-1/8" and 1-1/4"
  • Shaft: SS2343
  • Wire size: 1.3 mm2 - 16 GA
  • Max height 149 mm - 5.86"
  • Weight 1.3 kg - 2.75 lbs


Manufacturer Part Number: 16004-00
More Information
Special Shipping Message Free Ground Shipping*
Manufacturer Part Number: 16004
Specifications:
  • Gallons Per Hour = 1600 GPH
  • Operation = Non-Automatic
  • Outlet Size = 1-1/8"
  • Volts = 12v
  • Type = Electric
Product Video:
