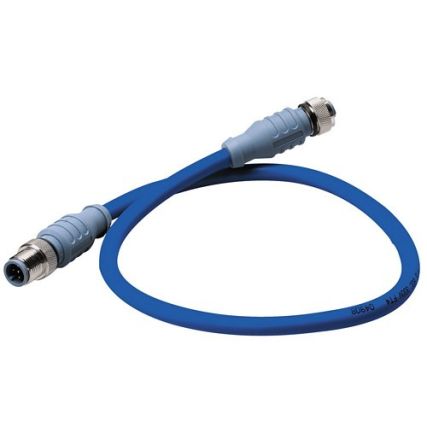

Maretron Mid Double-Ended Cordset - 5 Meter - Blue

Rating:
100% of 100

Condition: New

$44.37
Quantity in Stock: 7
SKU
MARDM-DB1-DF-05-0

Free Ground Shipping*

To Ship Out Next Business Day, Order This Item in the Next


Maretron Mid Double-Ended Cordset - 5 Meter - Blue

Maretron Mid Double-Ended Cordset - 5 M Blue

Mechanical:
  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59"

    Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V

    Cable

  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: PE (data pair), PVC (power pair)
  • Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

    ENVIRONMENTAL
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

    APPROVALS
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC 61162-3

    Manufacturer Part Number: DM-DB1-DF-05.0
  • More Information
    Special Shipping Message Free Ground Shipping*
    Manufacturer Part Number: DM-DB1-DF-05-0
    Specifications:
    • Cable Length (Feet) = 16'
