Ram Mount Handlebar Rail Mount W/Zinc Coated U-Bolt Base & Universal X-Grip Large Phone/Phablet Cradle

Ram Mount Handlebar Rail Mount W/Zinc Coated U-Bolt Base & Universal X-Grip Large Phone/Phablet Cradle

Handlebar Rail Mount w/Zinc Coated U-Bolt Base & Universal X-Grip® Large Phone/Phablet Cradle

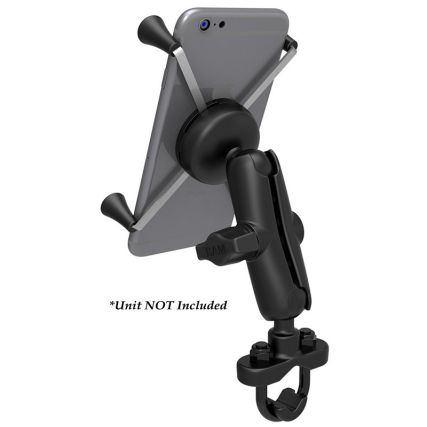

The RAM-B-149Z-UN10U consists of a zinc coated u-bolt base, double socket arm and universal spring loaded X-Grip® IV cradle for large phones and phablets. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM B size 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip® IV cradle expands and contracts, allowing for a perfect custom fit of your phone or phablet.

The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

U-Bolt Dimensions: 0.50" to 1.25"

Cradle Dimensions

• Minimum Width = 1.75" (Minimum Height = 5.5")
• Maximum Width = 4.5" (Minimum Height = 3.25")
• Depth = 0.875"

Features:

• Rustproof
• High strength composite and stainless steel construction
• Spring loaded cradle expands and contracts for perfect fit of your device
• Rubber coated tips will hold device firm and stable
• Socket technology allows for multiple adjustment angles and articulation of device
• Includes Tether for open cockpit and extreme environments
• Lifetime warranty
• Made in U.S.A.

Material:

Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components & High Strength Composite

Ball Size:

1" Rubber Ball "B" Size

Note:

The "U" in the part number reflects product packaged in poly bag. RAM highly recommends using the provided Tether for all open cockpit applications while using this product.

Weight:

0.75 lbs.
