Description

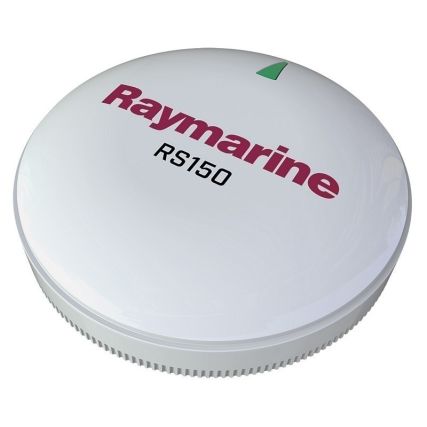

Raymarine Rs150 Gps Sensor

RS150 GPS Sensor

The RS150 GPS is a high performance, 72-channel, remotely mounted GPS sensor for Raymarine navigation systems. The RS150 offers fast 10Hz position updates and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.

Features:

72-channel GPS receiver
Fast 10Hz position updates
Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
A GNSS receiver with GLONASS compatibility
Low power consumption: 30mA (1 LEN)
SeaTalkng and NMEA2000 compatible (using a device net adapter cable)
Designed for low profile surface mounting or optional pole mounting

Specifications:

Nominal supply voltage: 12V D.C. Powered by N2K bus
Operating voltage range: 8 - 32V DC
Power consumption: 30 mA max (NMEA LEN = 1)
Operating temperature: -13ºF to 131ºF (-25ºC to +55ºC)
Relative humidity: max 93%
Waterproof: IPx6/7
Supported connection protocols: SeaTalk^ng: NMEA 2000 (certified) (via DeviceNet adaptor)
Sensitivity: High sensitivity - acquisition down to -163dBm
No. of channels: 72
Positioning System: GPS & GLONASS
Satellite Differential Type: WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India)
Differential acquisition: Automatic
Position accuracy (95%): <15M
Position accuracy with SDGPS (95%): <5M
Speed accuracy (95%): <0.3kt
Time to first fix from cold start: <2 minutes (< 45 seconds typical)
Time to first fix from hot start: < 8 seconds -72 hour hold up battery allows for hot start
Geodetic Datum: WGS84

Manufacturer Part Number: E70310

Quick Specs

More Information
Special Shipping Message	Free Ground Shipping*
Manufacturer Part Number:	E70310
Specifications:	Type = Antennas

Reviews 10

Write Your Own Review

You're reviewing:Raymarine Rs150 Gps Sensor

Your Rating

Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Email Address

Summary

Review

Advantages

Disadvantages

Add your photo

Products Q & A (2)

Customer Questions

Does this gps puck come with all mounting hardware and cabling needed?

In the box:
GPS receiver unit
Mounting seal
SeaTalkng spur cable (6 metres)
Documentation
M4 x 40mm Threaded studs x 3 (used for surface mounting)
Finger nuts x 3 (used for surface mounting)

What is the part number for the deck mounting kit?

The part number for the deck mount is a80437
