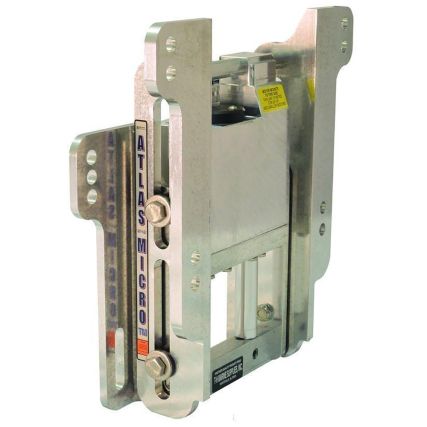

T-H Marine Atlas Micro Jacker Small Outboard Hydraulic Jack

T-H Marine Atlas Micro Jacker Small Outboard Hydraulic Jack - 4"

Atlas Micro Jacker Small Outboard Hydraulic Jack - 4"

SMALLEST & LIGHTEST HYDRAULIC JACK ON THE MARKET

For Small Outboards - Max Weight 425 lbs / Max Horsepower 115 HP

Great For Shallow Water Boats – Gheenoes River Runners – Jon Boats - Skiffs

Get Out of Trouble Fast – Lifts in 8 Seconds Lightweight – Only 23 Pounds Fish “Skinny Water” With Confidence Self Contained Hydraulics Maximum outboard dry weight: 425 pounds Maximum outboard horsepower: 115 HP* Only Four (4) Inch Setback Clamp-On Motor Adapter Available (optional) Small Footprint – Only 14-5/8” Wide and 11-1/2” High

Clamp-On Motor Adapter (part # AHJM-CMA-DP) allows you to mount smaller engines with clamp-on brackets to the ATLAS Micro Jacker, since they do not mount with bolts on the standard BIA engine hole pattern.

Adjustment Specifications:

With the Micro Jacker in place, you will have about 8.5” to work with in height. This includes 1.5” of adjustment at the transom, another 1.0” on the motor side, 1.0" of adjustment with the motor, and 5" of hydraulic lift with the Micro Jacker itself.

Warning WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: AHJM-4-DP

Quick Specs

More Information
Special Shipping Message	Free Ground Shipping*
Manufacturer Part Number:	AHJM-4-DP

Reviews 14

Write Your Own Review

You're reviewing:T-H Marine Atlas Micro Jacker Small Outboard Hydraulic Jack - 4"

Your Rating

Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Email Address

Summary

Review

Advantages

Disadvantages

Add your photo

Products Q & A (8)

Customer Questions

Does this one with everything and switch? And it is new unused

This will come as a complete kit with everything needed to install. This is a brand new product.

2013 Naurtic Star 1910 115 Yamaha motor. Looking for a lighter jack plate because looking to add a power pole not to add too much weight on my transom. Will this work for me.

Yes, this should work for your needs. However for any big installs on your boat I always recommend contacting the manufacturer for technical and exact information and you can do so here: 256-772-0164

Does it come with the clamp on motor adapter plate- part# AHJM-CMA-DP

The TH Marine Atlas Micro 4" Jack Plate Hydraulic Polished does not come with the clamp on motor adapter plate. It must be ordered separately.

Can a gauge work with this Jack plate?

Yes, you will need one of the gauges for the 4" or 8" jackplate available in Black(FAGK-1-DP) or Stainless steel bezels(FAGK-1SS-DP).

What exactly is included with this item?

Included is the plate, wire harness and switch. Mounting hardware is not included

Can I use a gauge for this hydraulic jack-plate?

No, at this time TH Marine does not make a gauge, or dash gauge for the micro-jacker

Does this product come with blinker switch, gauge or mounting hardware?

Blinker switch and gauge are not included. Please see SKU THMFFBT-S-DP for the single switch and SKU THMFFBT-D-DP for the double switch. Please see SKU THMFAGK-2-DP for the black gauge and SKU THMFAGK-2SS-DP for the stainless gauge. Mounting hardware...

Warranty?

The Atlas comes with a lifetime warranty on the frame and a 3 year warranty on the pump and actuator.
