Victron Lynx Shunt Ve.Can (M10)
Condition: New
Free Two Day Shipping*

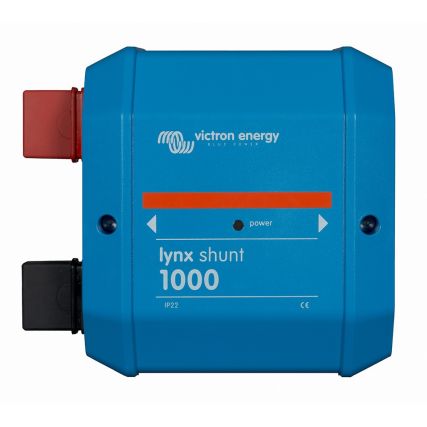

Victron Lynx Shunt Ve.Can (M10)
Lynx Shunt VE.Can (M10)
Busbar Integrated Battery Monitoring
The Lynx Shunt VE.Can contain a positive and negative busbar, a battery monitor, and a fuse holder for the main system fuse. It is part of the Lynx Distribution system. The Lynx Distributor has a power LED. The Lynx Shunt VE.Can can communicate via VE.Can with a GX device.
The Lynx Shunt VE.Can ship with two RJ45 VE.Can terminators, be used when connecting to a GX device.
The Lynx Shunt VE.Can is designed to hold a CNN fuse. The fuse needs to be purchased separately.
The Lynx Distribution System
The Lynx Distribution System is a modular busbar system incorporating DC connections, distribution, fusing, battery monitoring, and Lithium battery management.
The Lynx Distribution System Consists of the Following Parts:
- Lynx Power In - A positive and negative busbar with 4 batteries or DC equipment connections.
- Lynx Distributor - A positive and negative busbar with 4 fused connections for batteries or DC equipment together with fuse monitoring
- Lynx Shunt VE.Can - A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device
- Lynx Smart BMS - For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor that is driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring. It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal
Specifications:
Power:
- Supply Voltage Range: 9 - 70 Vdc
- Supported System Voltages: 12, 24 or 48V
- Reverse Polarity Protection: No
- Current Rating: 1000Adc continuous
- Power Consumption: 60mA @ 12V, 33mA @ 24V, 20mA @ 48V
- Potential Free Alarm Contact 3A, 30Vdc, 250Vac
Connections:
- Busbar: M8
- Fuse: M8
- VE.Can: RJ45 and RJ45 terminator
- Power Supply Connection to Lynx Distributor: RJ10 (an RJ10 cable ships with each Lynx Distributor)
- Temperature Sensor: Screw terminal
- Relay: Screw terminal
Physical:
- Enclosure Material: ABS
- Enclosure Dimensions (H x W x D): 190 x 180 x 80 mm
- Unit Weight: 1.4 kg
- Busbar Material: Tinned copper
- Busbar Dimensions (H x W): 8 x 30 mm
Environmental
- Operating Temperature Range: -40°C to +60°
- Storage Temperature Range: -40°C to +60°
- Humidity: Max. 95% (non-condensing)
- Protection Class: IP22
Manufacturer Part Number: LYN040102110
| Special Shipping Message | Free Two Day Shipping* |
|---|---|
| Manufacturer Part Number: | LYN040102110 |
