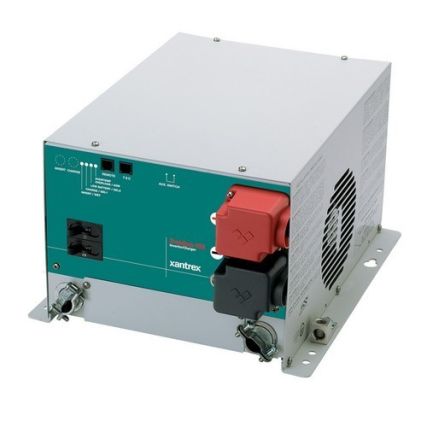

Xantrex Freedom 458 20-12 Inverter/Charger - Single Input/Dual Output
Condition: New
Free Ground Shipping*
Xantrex Freedom 458 20-12 Inverter/Charger - Single Input/Dual Output
Freedom 458 Inverter/ChargerAC Power Inverter with High Surge Capability, 3-Stage Charger
With filtered modified sine wave output, Freedom inverter/chargers run virtually anything, from electrical equipment to appliances and electronics in your RV. Temperature controlled multistage charging ensures that your batteries are recharged quickly, and automatic shutdown and other safety features protect your expensive deep-cycle batteries from excessive depletion.
For inverter/charger control and basic system monitoring, use the Freedom Basic Remote. For advanced battery monitoring and remote control, Freedom 458 systems can be paired with optional Link instrumentation.
Product Features
- MSW AC power inverter with high surge capability
- Automatic 3-stage battery charger
- Temperature compensation with equalization stage provides optimal charging of deep cycle batteries
- Built-in transfer switch automatically transfers between inverter power and incoming AC power
- Power sharing prevents source AC input circuit breaker from tripping
- Customized settings can be programmed with the Freedom Basic Remote or Link 1000 panels
- Includes battery temperature sensor
- 30 month warranty
Protection Features
- Over voltage and under voltage protection
- Over-temperature protection
- Overload protection
- Short circuit protection
Electrical Specifications - Inverter
- Output power (continuous): 2000W
- Surge power (AC amps): 50A
- Output frequency regulation: 60Hz
- Inverter voltage regulation: 120V +/-5% true RMS
- Output wave form: Modified sine wave
- Efficiency (full load): 85%
- Peak efficiency: 92%
- No load current draw (idle mode): 0.12A
- AC output connections: Dual - 20/15 Circuit Breakers
- AC input connections: Single
- AC transfer switch: 30A
Electrical Specifications - Charger
- Charge rate: 100A DC
- AC input voltage range: 90 130 VAC
- Battery voltage (nominal): 12 VDC
- Battery voltage range: 10.0 15.5 VDC
- Low battery cut-out: 10.0 VDC
- AC input (max. charge mode): 21A AC
- Bulk charge voltage: 14.3 VDC***
- Float charge voltage: 13.4 VDC***
- Equalize charge voltage: 16.3 VDC
- Charge control: 3-stage
- Battery type settings: Wet / Gel 1 / Gel 2 / AGM
- Equalization: Yes
- Temperature sensitive charging: Yes
***Default value varies with battery type and temperature
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer Part Number: 81-2022-12
| Special Shipping Message | Free Ground Shipping* |
|---|---|
| Manufacturer Part Number: | 81-2022-12 |
| Specifications: |
|
